Winding Ahead: Innovations in EV Motor Coils Driving the Electric Revolution
Introduction

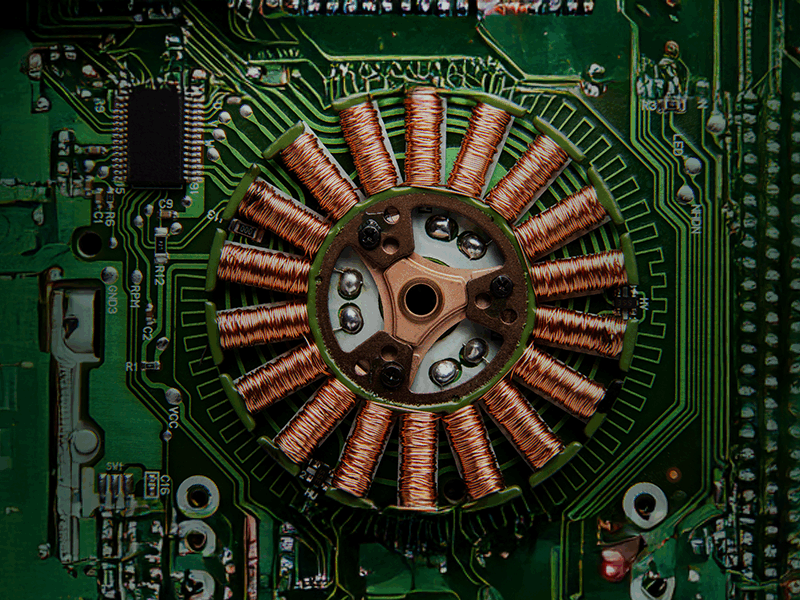

Imagine an electric vehicle (EV) accelerating silently from 0 to 90 kph in seconds. What’s propelling this feat? Not just batteries, but the secret ingredient hidden within: the electric motor. At its core lies a labyrinth of precisely wound copper coils, that convert electrical energy into motion with flawless efficiency. These coils are no ordinary loops of wire; they’re marvels of automotive winding technology. They are engineered to withstand extreme temperatures, high voltages, and the relentless demand for performance.
The shift from internal combustion engines to EVs isn’t just about swapping fuel tanks for batteries. It’s a reimagining of how energy is harnessed, and EV motor coil winding sits at the center of this transformation. Gone are the days of hand-wound coils and guesswork. Today, advancements in high-precision coil winding are enabling motors that are lighter and more powerful. The reliability of these coils are paving the way for the next generation of electric mobility.
Why Coil Winding Matters in EV Performance?
The coil winding process is fundamental to the electric motor’s ability to convert electrical energy into mechanical motion efficiently. The precision with which coils are wound affects the motor’s magnetic field strength, heat dissipation, and electrical resistance. Inefficient winding can lead to increased energy losses, overheating, and premature motor failure.
Modern EV motor coil winding techniques focus on maximizing the copper fill factor within the stator slots, which directly correlates with the motor’s efficiency and power density. By using rectangular or hairpin-shaped wires instead of traditional round wires, manufacturers can pack more conductive material into the same space, reducing resistance and improving thermal conductivity. This results in motors that deliver higher torque and power without increasing size or weight.
Moreover, the durability of the coils is paramount, as EV motors operate under high thermal and mechanical stresses. Advanced winding methods ensure that coils maintain their structural integrity over the vehicle’s lifespan, reducing maintenance costs and enhancing reliability.
Breakthroughs in Automotive Winding Technology
One of the most significant breakthroughs in automotive winding technology is the adoption of hairpin winding. This method uses pre-formed rectangular copper bars that are bent into hairpin shapes and inserted into stator slots. The hairpins are then laser-welded to form continuous coils, ensuring electrical continuity and mechanical stability. Hairpin winding offers several advantages over traditional methods. The higher slot fill factor achieved by rectangular conductors allows for more efficient use of space and materials. Additionally, the flat surfaces of the hairpins improve heat dissipation, which is critical for maintaining motor performance during prolonged operation.
Automation plays a crucial role in hairpin winding, with robotic systems capable of bending, inserting, and welding hairpins with micro-level precision. This level of automation not only increases production speed but also reduces the risk of defects.
Beyond hairpin winding, the integration of AI and IoT technologies into coil winding machines is changing the quality control and process optimization. Real-time monitoring of wire tension, temperature, and winding patterns allows for immediate adjustments, ensuring each coil meets exact specifications.
Hybrid manufacturing techniques, such as combining additive manufacturing with traditional winding, are also emerging. These methods enable the creation of coils with integrated cooling channels and customized insulation, further enhancing motor performance and longevity.
Overcoming Challenges in EV Motor Production
Despite these advancements, manufacturers face several challenges in EV motor coil winding. The high demand for copper, coupled with fluctuating prices and supply chain constraints, pressures companies to explore alternatives like aluminium wiring.
Balancing scalability with customization is another challenge. While mass production requires standardized processes, the growing diversity of EV models demands flexible winding solutions capable of handling various coil designs and specifications.
Quality control remains a critical concern, as even minor defects can compromise motor performance. Advanced inspection systems using AI-powered vision technology are becoming essential tools for detecting and addressing issues such as wire slippage, insulation defects, and welding inconsistencies.
Case Study: Porsche Taycan – Hairpin Winding in Action
The Porsche Taycan, a flagship electric vehicle, is a prime example of how advanced automotive winding technology can improve EV performance. At the heart of its electric motors is a hairpin winding technique, where pre-formed rectangular copper bars are bent into U-shapes and inserted into the stator slots before being laser-welded. This innovative approach achieves a copper fill factor of nearly 70%, which is well above the 45–50% typical of traditional round-wire windings. This resulted in higher power density and improved thermal management.
As a result, the Taycan’s rear motor delivers up to 751 horsepower (in Turbo S trim), enabling breathtaking acceleration from 0 to 60 mph in just 2.6 seconds. The robust, tightly packed coils also help the motor maintain performance and reliability under demanding conditions. Porsche’s adoption of hairpin winding has set a new standard for high-performance EVs, and the technology is now being used by other automakers seeking similar gains in efficiency and power.
Future Trends in EV Motor Winding
Looking ahead, the future of EV motor coil winding is poised for exciting innovations. AI-driven design optimization will enable the creation of coils tailored to specific vehicle performance profiles.
Sustainability will also take center stage, with research focused on developing recyclable materials and environmentally friendly manufacturing processes. The potential use of superconducting materials like graphene could revolutionize coil design, offering unprecedented electrical conductivity and efficiency.
Wireless monitoring technologies embedded within coils will provide real-time data on motor health, enabling predictive maintenance and reducing downtime. These smart coils will be integral to the connected vehicles of the future, contributing to safer and more reliable transportation.
Coiling Toward a Greener Future
The evolution of EV motor coil winding is a cornerstone of the electric vehicle revolution. Advancements in robotic hairpin winders, AI-driven quality control, and integrated thermal management are making EVs faster, more reliable, and more accessible. The future of transportation is precision-wound, with innovations in coil winding technology playing a pivotal role in the transition to sustainable mobility.
As automakers continue to push the boundaries of performance and efficiency, the importance of high-precision coil winding will only grow. Explore how Synthesis Winding Technologies’ cutting-edge solutions are shaping the next generation of electric motors and driving the future of electric vehicle manufacturing.
