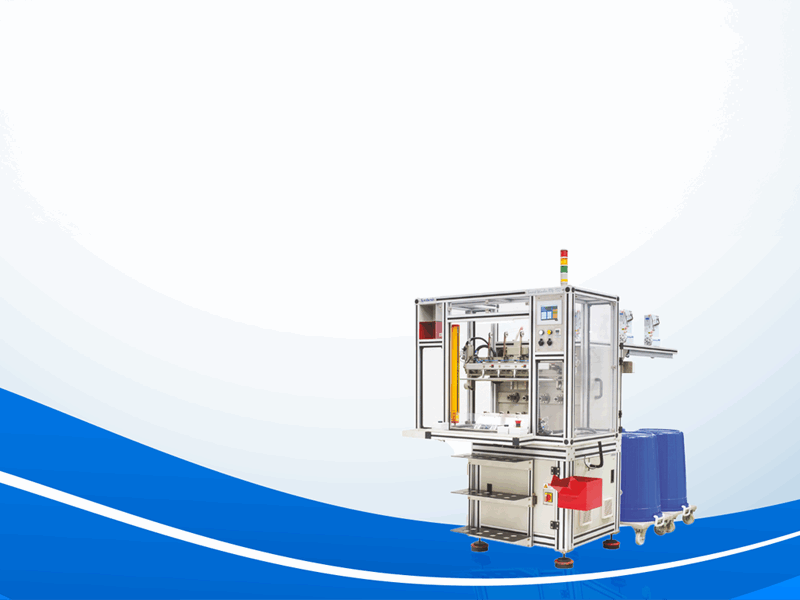

Precision at Scale: The Power of Multi-Spindle Winding Machines

Precision at Scale: The Power of Multi-Spindle Winding Machines

Introduction

Walk into any modern factory, and you’ll notice lines of machines working in perfect harmony. Producing intricate coils with speed and accuracy would have seemed impossible just a decade ago, not anymore. What’s powering this quiet revolution? It’s not just automation, but it’s the evolution of coil winding technology itself.

Gone are the days when teams of operators painstakingly wound each coil by hand or waited for single-spindle machines to finish one job at a time. Today, manufacturers face the challenge of delivering more, faster, and with zero compromises on quality. The answer lies in the automatic multi-spindle winding machine. This is a solution that doesn’t just keep up with demand but sets a new standard on the production line.

As industries push boundaries in electric vehicles, smart electronics, and renewable energy, the need for consistent, high-speed coil production has never been greater. Let’s explore how automatic multi-spindle winding machines are helping manufacturers meet these challenges head-on and shape the future of coil manufacturing.

Understanding Automatic Multi-Spindle Winding Machines

An automatic multi-spindle winding machine is engineered to wind multiple coils simultaneously, using several spindles controlled by a single system. This approach dramatically increases throughput, making it ideal for high-volume manufacturers. Unlike single-spindle machines, which wind one coil at a time, multi-spindle systems can produce dozens of coils in parallel with consistent quality and minimal variation.

These machines are equipped with sophisticated controls, including CNC coil winding solutions and multi-axis winding technology. This allows for precise programming of winding patterns, wire tension, and coil dimensions. Operators can set up the machine to handle a wide range of coil types, from tiny electronic components to large transformer windings.

Key Technologies Driving Efficiency

CNC Coil Winding Solutions

At the heart of every modern multi-spindle machine is a robust CNC (Computer Numerical Control) system. CNC coil winding solutions enable manufacturers to automate the most intricate aspects of coil production. Operators can program the number of turns, wire pitch, tension, and even the winding pattern itself. This level of control ensures that every coil meets exact specifications, regardless of production volume.

CNC systems also allow for the storage and recall of multiple winding programs. This means manufacturers can switch between different coil designs with minimal downtime, supporting both high-speed coil production and the flexibility needed for custom orders.

Multi-Axis Winding Technology

Multi-axis winding technology refers to the use of multiple, coordinated axes (typically X, Y, and Z) to control the movement of the winding head and the positioning of the wire. This technology is essential for creating complex coil geometries, such as those found in electric vehicle motors or high-frequency transformers.

With multi-axis control, the machine can precisely guide the wire along intricate paths, ensuring even distribution and optimal coil performance. This is especially valuable for applications requiring ortho cyclic or random windings, where traditional methods would be too slow or inconsistent.

High-Speed Coil Production

One of the most significant advantages of automatic multi-spindle winding machines is their ability to deliver high-speed coil production. By winding multiple coils at once, these machines can fulfill large orders in a fraction of the time required by manual or single-spindle systems. This speed does not come at the expense of quality; advanced controls and monitoring systems ensure that each coil is produced to exact standards.

IoT Integration and Predictive Maintenance

Modern multi-spindle machines often feature IoT (Internet of Things) integration, allowing for real-time monitoring of machine performance. Sensors track parameters such as spindle speed, wire tension, and temperature, providing valuable data for predictive maintenance. This proactive approach reduces unplanned downtime and extends the life of the equipment.

Industry Applications and Use Cases

Automotive Sector

In the automotive industry, the shift toward electric vehicles and advanced driver-assistance systems has dramatically increased the demand for high-precision coils. Components such as stators for electric motors, ignition coils, and solenoid valves must be produced with exceptional consistency. Automatic multi-spindle winding machines are particularly valuable here. They enable manufacturers to meet large-volume requirements while maintaining tight tolerances. With CNC coil winding solutions and multi-axis winding technology, automotive suppliers can rapidly switch between different coil designs. This supports both mass production and the customization needed for various vehicle models.

Electronics & Consumer Devices

The electronics sector is characterized by rapid product cycles and the need for miniaturization. Devices like smartphones, wearables, and IoT sensors rely on tiny, intricate coils. High-speed coil production is essential to keep up with market demand and technological advancements. Multi-spindle winding machines excel in this environment, producing multiple micro-coils simultaneously with precise control over wire placement and tension. Programmable CNC controls allow for quick adaptation to new product designs, reducing downtime and ensuring every coil meets stringent quality standards.

Renewable Energy

As the world moves toward greener energy solutions, the renewable energy sector has seen a surge in demand for robust and reliable coils. Wind turbine generators, solar inverter chokes, and energy storage systems all require coils that can withstand harsh operating conditions and deliver consistent performance over time. Automatic multi-spindle winding machines enable energy manufacturers to produce these components at scale, with the flexibility to handle varying coil sizes and specifications. The integration of multi-axis winding technology ensures that even complex, heavy-duty coils are wound with precision, supporting the reliability of renewable energy infrastructure.

Industrial Automation and Robotics

Modern factories and robotic systems depend on a wide array of electromagnetic coils, from relays and actuators to servo motor windings. In these applications, efficiency and repeatability are paramount. Multi-spindle winding machines, equipped with advanced CNC coil winding solutions, allow industrial suppliers to produce large batches of identical coils quickly and with minimal variation. The ability to program and store multiple winding patterns is especially useful for contract manufacturers who serve diverse clients and must frequently change production setups.

Medical Devices

In the medical field, the stakes for precision and reliability are even higher. Diagnostic equipment, imaging devices, and implantable technologies all utilize specialized coils. These coils often require ultra-fine wire and highly controlled winding parameters to meet strict regulatory standards. Automatic multi-spindle winding machines, with their programmable features and real-time monitoring capabilities, help medical device manufacturers maintain the high quality and traceability needed for critical healthcare applications. The machines’ flexibility also allows for the efficient production of both standard and custom coil designs.

Benefits Beyond Speed

Consistency & Quality

Automatic multi-spindle winding machines deliver unparalleled consistency. With CNC and multi-axis controls, every coil is wound to the same specifications, reducing variability and ensuring product reliability. This is especially important in industries where even minor deviations can lead to equipment failure or safety concerns.

Reduced Labor & Operational Costs

By automating the winding process, companies can reallocate skilled workers to more value-added tasks, such as quality assurance or product development. This not only reduces labour costs but also fosters a culture of innovation within the organization.

Flexibility & Scalability

Manufacturers can easily scale production up or down by adjusting the number of active spindles or switching between stored winding programs. This flexibility is crucial in markets where demand can fluctuate or where product customization is a competitive advantage.

Overcoming Implementation Challenges

Transitioning to an automatic multi-spindle winding machine can present challenges, including the need for operator training and integration with existing production lines. However, most modern systems are designed with user-friendly interfaces and comprehensive support from manufacturers like Synthesis Winding Technologies. Investing in proper training and maintenance ensures a smooth transition and maximizes the return on investment.

Best Practices for Maximizing ROI

Assess Production Needs: Understand your coil volume, variety, and quality requirements before selecting a machine.

Plan for Scalability: Choose machines that can be upgraded or expanded as your business grows.

Invest in Training: Equip your operators with the skills to maximize machine capabilities.

Leverage Data: Use IoT and machine analytics to optimize production and predict maintenance.

Regular Maintenance: Follow manufacturer guidelines to maintain machine performance and longevity.

What’s Next for Coil Winding Technology?

The future of coil winding is being shaped by ongoing advancements in automation and digitalization. AI-driven optimization is on the horizon, with machine learning algorithms that automatically adjust winding parameters for maximum efficiency and minimal material waste. Green manufacturing practices are also gaining traction, with energy-efficient motors and recyclable materials becoming standard in new designs.

Hybrid systems that combine additive manufacturing (3D printing) with traditional winding are emerging. This allows for the creation of innovative coil geometries that were previously impossible. As these trends continue, automatic multi-spindle winding machines will remain at the forefront of manufacturing innovation.

Final Thoughts

In a competitive global market, manufacturers cannot afford to overlook the benefits of automation. The automatic multi-spindle winding machine, powered by CNC coil winding solutions and multi-axis winding technology. It offers a transformative path to high-speed coil production, consistent quality, and long-term operational savings.

By embracing these technologies, companies position themselves to meet current demands and adapt to future challenges. Whether you’re producing coils for electric vehicles, renewable energy systems, or cutting-edge medical devices, the right winding solution can make all the difference.

Ready to enhance your manufacturing efficiency? Discover how Synthesis Winding Technologies’ automatic multi-spindle winding machines can transform your production line and set you on the path to industry leadership.
