From Power Tools to Pumps: Applications of Armature Winding Machines
A drill bites into concrete, a water pump lifts a single drop, and a mixer turns ingredients into breakfast. But what powers these equipment’s for work that requires strong power and grind? That happens in a factory thousands of miles away, when a copper wire is guided, stretched, and wound with remarkable precision around an armature that eventually powers these tools, appliances, or machines.
Though hidden from the end user, the quality of this winding process can influence performance, reliability, and production efficiency. That’s why manufacturers across industries rely on armature winding machines to create consistent, high-quality motor components at scale. From power tools and pumps to automotive systems and household appliances, these machines play a critical role in keeping modern manufacturing moving.
Understanding the role of armature winding machines
At the core of every DC motor lies the armature winding, the carefully arranged copper conductors that interact with magnetic fields to produce motion. In simple terms, what is armature winding in DC machine refers to the process of placing insulated copper wire in specific patterns on the armature core to generate electromotive force when the motor operates.
The importance of armature winding is direct and measurable: it influences motor efficiency, torque output, heat generation, and overall reliability. Even small inconsistencies in winding can lead to performance loss or premature motor failure.
An armature coil winding machine ensures this process is controlled, repeatable, and precise, especially in mass production environments.
There are two primary approaches:
- Manual armature winding machine: Suitable for low-volume production, repair work, or prototyping where flexibility matters more than speed.
- Automatic armature winding machine: Designed for high-volume manufacturing, offering consistency, speed, and reduced dependency on operator skill.
Power tools and handheld equipment
In a power tool factory, everything is designed around one promise: high speed without compromise. Electric drills, angle grinders, sanders, and rotary hammers all rely on compact DC motors that must deliver rapid torque changes while maintaining stability under load.
Applications in power tools
Electric drills, angle grinders, sanders, and rotary hammers all rely on compact, high-speed motors. While their shapes differ, their expectation from the motor is the same: fast response and stable output in demanding conditions.
High-speed motor requirements
Power tools rarely operate in steady conditions. The motor is constantly accelerating, resisting load, and recovering speed. This makes winding precision critical, since uniform coil distribution directly influences torque delivery and thermal behavior. In armature winding in DC machines, even minor inconsistencies can begin to show up as performance drifts during heavy use.
Production consistency and accuracy
In mass production, variation is the real enemy. Two tools rolling off the same line must feel identical in the user’s hand. If winding quality shifts between batches, the difference may not be visible, but it will be felt in vibration, speed stability, and overall tool life driven by innovation in modern winding solutions.
Role of automatic armature winding machines
To maintain this level of uniformity, manufacturers increasingly adopt automatic armature winding machines. These systems reduce dependency on operator skill and bring repeatability into a process where even small deviations matter. For high-volume production, consistency is not a luxury; it is the baseline requirement.
Real-world manufacturing challenge
In power tools, a minor winding variation does not announce itself immediately. It slowly reshapes torque behavior, subtly affects speed stability, and shortens the lifespan of the product long before failure is obvious. That hidden drift is what manufacturers aim to eliminate at the winding stage itself.

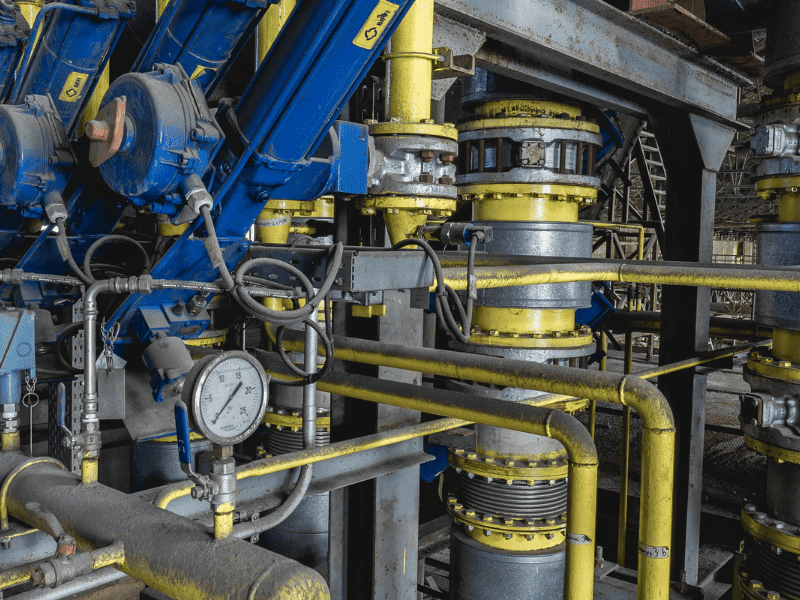

Pumps and fluid management systems
In a pump manufacturing line, the stakes feel different. A power tool can fail and be replaced. A pump that fails can interrupt water supply, halt irrigation, or bring an entire process line to a stop.
Applications in pump systems
Domestic water pumps, agricultural pumps, and industrial pumping systems all rely on compact electric motors driven by precisely wound armatures. While the environments differ, the expectation remains constant: dependable motion that does not hesitate under load.
Continuous operation requirements
Unlike intermittent-duty devices, pumps are often designed to run for long durations without interruption. This continuous operation places steady thermal and electrical stress on the motor. In this context, armature winding in DC machines must ensure uniform current distribution and stable performance over extended cycles, where even minor inefficiencies accumulate over time.
Reliability expectations in real use
Pump systems are judged less by peak performance and more by endurance. A slight imbalance in winding can translate into vibration, heat buildup, or reduced efficiency, which gradually affects reliability. For manufacturers, consistency in winding becomes a direct contributor to field performance and brand trust driven by automation in winding machine adoption.
Importance of precise armature winding
Precise coil placement and uniform winding tension are critical in pump motors because they operate under steady load conditions. This is where an armature coil winding machine plays a key role, ensuring repeatability across long production runs and reducing variation that could surface only after installation in the field.
Real-world manufacturing challenge
A pump rarely fails at a convenient moment. When it does, it can disrupt water supply, halt agricultural irrigation, or stop industrial processes entirely. Because of this, even small deviations in winding quality become significant, as they quietly influence long-term motor stability and directly affect downtime risk.
Home appliances and consumer products
Walk into any kitchen or living room, and electric motors are already working quietly in the background. Mixer grinders, vacuum cleaners, washing machines, and compact kitchen appliances all depend on small but highly efficient motors.
Applications in home appliances
Mixer grinders, vacuum cleaners, washing machines, and other compact appliances all use motors driven by precisely wound armatures. While the end products vary widely, they share a common expectation: smooth, reliable performance at scale.
High-volume production demands
Unlike industrial systems, home appliances are produced in extremely large quantities. Manufacturers often operate under tight production schedules where output per hour directly impacts profitability. In this environment, armature winding in AC machines and DC machines must support fast, repeatable manufacturing without variation between units.
Cost efficiency and repeatability
In consumer markets, even small cost differences matter. Efficient winding processes reduce material waste, minimize rework, and ensure that each motor performs consistently. Repeatability is not just a quality metric here; it is a cost-control mechanism that directly affects competitiveness through cnc winding machines.
Manufacturing priorities in appliance motors
| Requirement | Manufacturing Priority |
| High output | Faster winding cycles |
| Product consistency | Accurate coil placement |
| Cost control | Reduced rework and scrap |
Real-world manufacturing challenge
In home appliance production, the pressure is not on one machine failing in the field, but on thousands of units leaving the line every day without deviation. A small variation in winding may not be noticed immediately, but across high volumes it becomes a silent source of inefficiency, affecting both cost and brand consistency.
Automotive and mobility applications
In automotive manufacturing, nothing is built in isolation. Every component becomes part of a larger system where performance, safety, and reliability are tightly interlinked. Inside this ecosystem, small electric motors power critical functions, from starting the engine to maintaining visibility in rain. At the heart of these motors lies precise DC machine armature winding, where consistency is not optional but expected by design, especially with rising focus on ev motor coil winding.
Applications in automotive systems
Starter motors, wiper motors, blower motors, and auxiliary motors are widely used across passenger vehicles and commercial mobility systems. While each serves a different function, they all depend on compact motors designed for reliable operation under varying load and environmental conditions.
Quality standards and functional reliability
Automotive components are governed by strict quality benchmarks. Motors must perform consistently across temperature changes, vibration, and long service cycles. This places direct importance on winding precision, since even minor deviations in coil uniformity can affect efficiency, torque response, and durability over time.
Traceability and process control
Unlike many consumer applications, automotive manufacturing demands traceability at every stage. The winding process is expected to be controlled, documented, and repeatable across production batches. This is where an automatic armature winding machine becomes essential, ensuring not just speed but process stability and uniformity across thousands of units.
Production scalability in automotive supply chains
Automotive suppliers operate within high-volume, time-sensitive supply chains. Scaling production without losing consistency is a constant challenge. Automated winding systems help bridge this gap by maintaining uniform coil placement and reducing variation as output increases.
Real-world manufacturing challenge
Automotive suppliers are not judged by individual performance but by consistency across thousands of components delivered over time. Even a small variation in armature winding can ripple into system-level inefficiencies, making uniformity and process control critical at every stage of production.
Choosing the right armature winding machine for different applications
Every application we explored earlier, from power tools to automotive systems, ultimately leads to a single decision point: how the winding is produced on the shop floor.
Manual armature winding machine
A manual armature winding machine fits environments where flexibility matters more than throughput. Repair workshops often deal with varied motor types, requiring adaptability rather than speed. Similarly, low-volume production and prototype development benefit from hands-on control, where operators can adjust winding patterns without complex programming or setup overhead.
Automatic armature winding machine
An automatic armature winding machine is designed for scale and consistency. OEM manufacturers, high-volume production facilities, and multi-shift operations rely on automation to maintain uniformity across thousands of components. In these environments, repeatability is more valuable than manual flexibility, especially when tight delivery schedules and quality expectations intersect.
Key selection factors
Choosing between machine types depends on how production behaves in reality, not just on specifications. Manufacturers typically evaluate:
- Production volume and expected growth
- Motor type and design variation
- Complexity of the winding pattern
- Frequency of changeovers between models
- Long-term scalability requirements
Each factor influences whether flexibility or automation becomes the dominant need in the production line.
Across industries, the right armature winding setup directly shapes motor performance, consistency, and production scale. At Synthesis Winding Solutions, we help manufacturers choose the right solution for their real-world applications, from manual setups to fully automatic systems.
Get in touch with Synthesis Winding Solutions to find the right armature winding machine for your production needs.
Frequently Asked Questions
1. What is armature winding in a DC machine and why is it important?
Armature winding in a DC machine refers to the placement of insulated copper coils on the armature core to generate electromagnetic force. It directly impacts motor efficiency, torque, and reliability.
2. What is the difference between a manual and an automatic armature winding machine?
A manual armature winding machine is suitable for low-volume production and repair work, while an automatic armature winding machine is designed for high-volume manufacturing with better consistency and speed.
3. In which industries are armature winding machines commonly used?
Armature winding machines are widely used in power tools, home appliances, pumps, automotive motors, and industrial equipment manufacturing where consistent motor performance is required.
